AXESS
Accessories

35006 Mounting set

AXESS
Accessories

35006 Mounting set

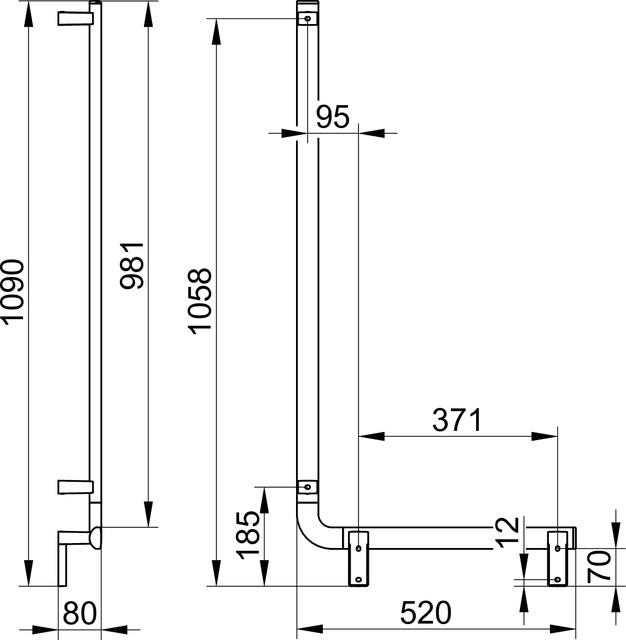

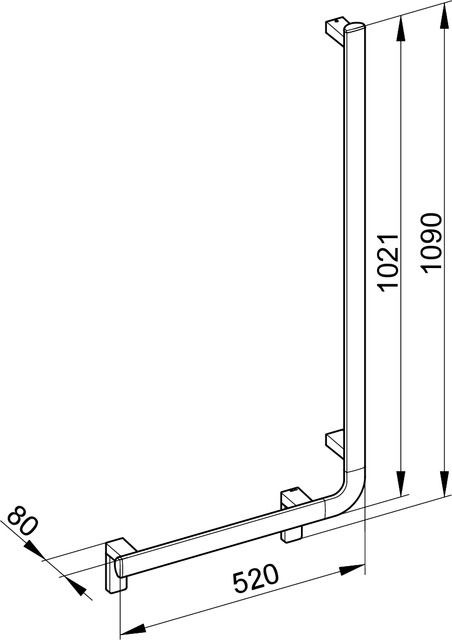

Variants

Item number Finish Width x Height x Depth

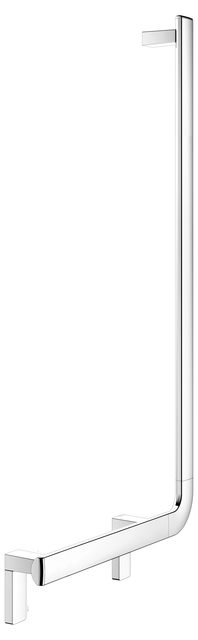

35006010801 chrome-plated 381 mm x 851 mm x 80 mm
35006011001
New
 chrome-plated 520 mm x 1090 mm x 80 mm

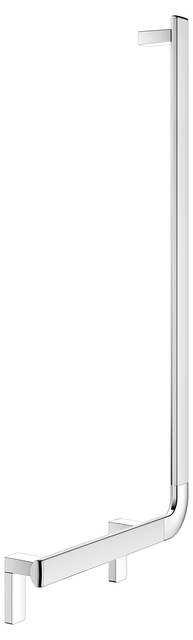

35006170801 aluminium silver anodized/chrome-plated 381 mm x 851 mm x 80 mm
35006171001
New
 aluminium silver anodized/chrome-plated 520 mm x 1090 mm x 80 mm

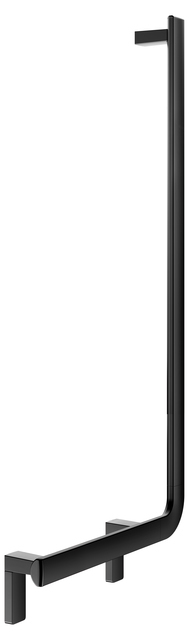

35006370801 black matt 381 mm x 851 mm x 80 mm
35006371001
New
 black matt 520 mm x 1090 mm x 80 mm

Variants

Item number
Finish
Width x Height x Depth 		35006010801
chrome-plated
381 mm x 851 mm x 80 mm
Item number
Finish
Width x Height x Depth 		35006011001
chrome-plated
520 mm x 1090 mm x 80 mm
Item number
Finish
Width x Height x Depth 		35006170801
aluminium silver anodized/chrome-plated
381 mm x 851 mm x 80 mm
Item number
Finish
Width x Height x Depth 		35006171001
aluminium silver anodized/chrome-plated
520 mm x 1090 mm x 80 mm
Item number
Finish
Width x Height x Depth 		35006370801
black matt
381 mm x 851 mm x 80 mm
Item number
Finish
Width x Height x Depth 		35006371001
black matt
520 mm x 1090 mm x 80 mm

Spareparts

Mounting set

34990000100

Mounting set
PRODUCT DESCRIPTION
Product description
No. 1
consisting of:
3 x woodscrews with round head DIN 7996 6x70 V2A
3 x universal wall plugs UX 8 R
Product description
No. 1
consisting of:
3 x woodscrews with round head DIN 7996 6x70 V2A
3 x universal wall plugs UX 8 R
Note
Essential for mounting the following items:
article no. 34901, 34906, 34907, 34908, 34911, 34912, 34914, 34915.

Please order separately.
Note
Essential for mounting the following items:
article no. 34901, 34906, 34907, 34908, 34911, 34912, 34914, 34915.

Please order separately.
Downloads
Product image
Product data sheet
Product image
Product data sheet
